RELAY BOARD
BRAND
Securitron
SES #
SEC RB424
MFG #
RB-4-24
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days

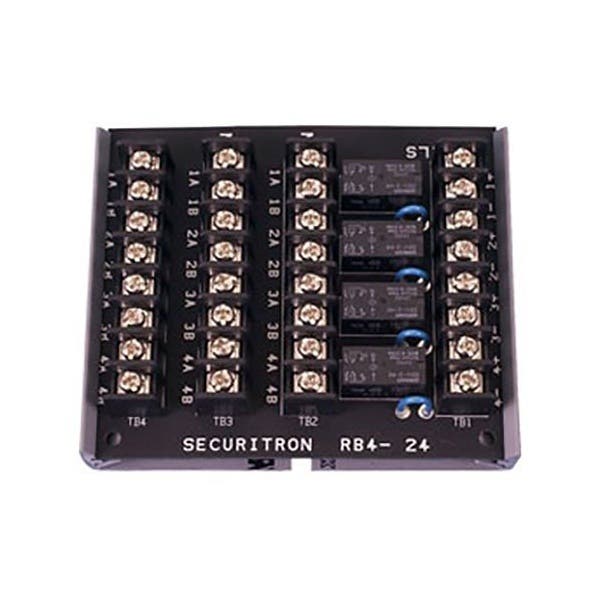

The relay board provides normally open or normally closed relays that can be interconnected. Ideal for interlock installations or wherever a basic relay board is used to trigger action, shunt alarms or report status from an access control system.
- Adds relays for uses including shunting, interlocking and reporting
- Individual coil connections - common negative or positive
- Replaces socket mount relays
- Mounts 4 DPDT relays with 2 Amp contacts
- All dry contact connections are brought out on screw terminals
- Relays have low current coils (13mA at 12VDC; 8mA at 24VDC)
- Allows operation from most LED drive outputs
- Operating Temperature: -13 to +158F [-25 to +70C]
