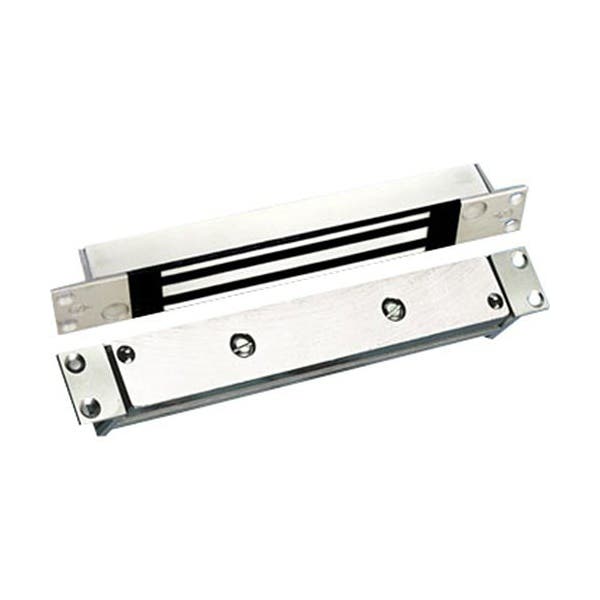

SHEAR ALIGNING MAGNA- LOCK 12/24VDC
BRAND
Securitron
SES #
SEC SAM
MFG #
SAM
UPC
784607028048
Your Price
Usually ships between 3-7 business days
1200 lbs. holding force Shear Aligning Magnalock mounts fully concealed into wood, steel or aluminum doors. SAM can also be installed in any position on the door - top, side or bottom and is ideal for swing through and sliding doors.
- Patented instant release circuit - no residual magnetism
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening type including mounting brackets
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- Lock options include BondSTAT magnetic bond sensor and integrated door position switch
- UL Listed
- MagnaCare lifetime replacement, no fault warranty
- Holding Force: 1200 lbs. [544 kg]
- Current Draw and Voltage: 320mA at 12VDC; 170mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
- Shipping Weight: 6 lbs.
- Certifications and Listings
- UL 10C Listed
- UL/cUL GWXT.R13976 /GWXT7.R13976
- UL/cUL FWAX7.SA6635
- UL/cUL FWAX2.SA6635 /FWAX8.SA6635
- UL/cUL ALVY.BP7041
- UL Certificate of Compliance (CoC)
- CSFM 3774-0923:0101
- CSFM 3774-0923:0102
- CSFM 3774-0923:0103
- CAN4-S104, CAN/ ULC-S533 Listed
- ANSI/UL 294 Listed
- ANSI/BHMA A156.23, Grade 1;E08561-1000, E08571-1000,E08581-1000, E08591-1000
- CSFM - California State Fire Marshal Approved
- CE:EN 50081-1(92), EN 61000-6-2(99) Approved
