48" TOUCH SENSE BAR CLEAR ANODIZED FINISH
BRAND
Securitron
SES #
SEC TSBCL48
MFG #
TSB-CL-48
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days

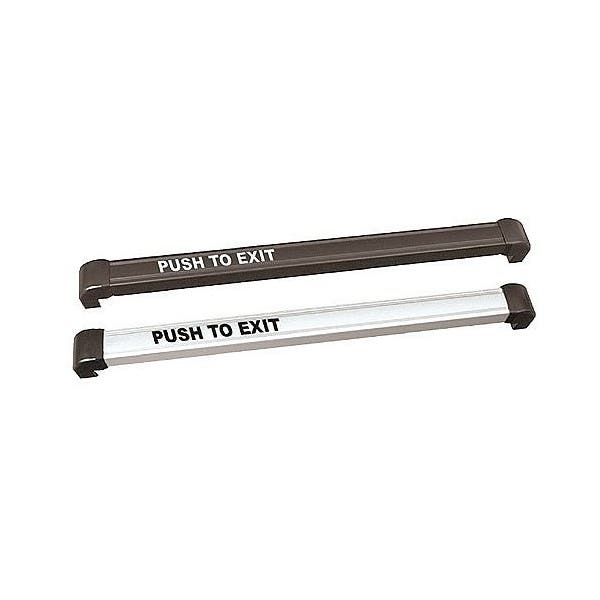

The TSB Touch Sense Bar provides touch-triggered release of magnetically locked, non-fire-rated doors. Touching the bar, even through light gloves or clothing, triggers and electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets "no special tools or knowledge" criteria in code requirements.
- Can be field cut to accommodate non-standard openings up to 48"
- Activates a DPST 2 Amp rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer
- Backup push button
- 16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included
- Operates on either 12 or 24VDC
- Available ElectroLynx ready
- MagnaCare lifetime replacement, no fault warranty
- Current Draw: 40mA at rest; 25mA releasing
- Voltage: 12 or 24VDC
- Operating Temperature: +32 to +110F [0 to +43C]
- Shipping Weight: 7 to 9 lbs. depending on length
- Certifications and Listings
- UL/cUL FWAX2.SA6635
- UL/cUL ALVY.BP7041 /UEHX7.BP7041
- UL Certificate of Compliance (CoC)
- CSFM 3774-0923:0102
- CSFM 3774-0923:0103
- ANSI/UL 294 Listed
- CSA-C22.2 No.205 Listed
- CSFM - California State Fire Marshal Approved
- MEA- City of New York Approved
- CE: EN 50091-1,EN 61000-6-2 Approved
