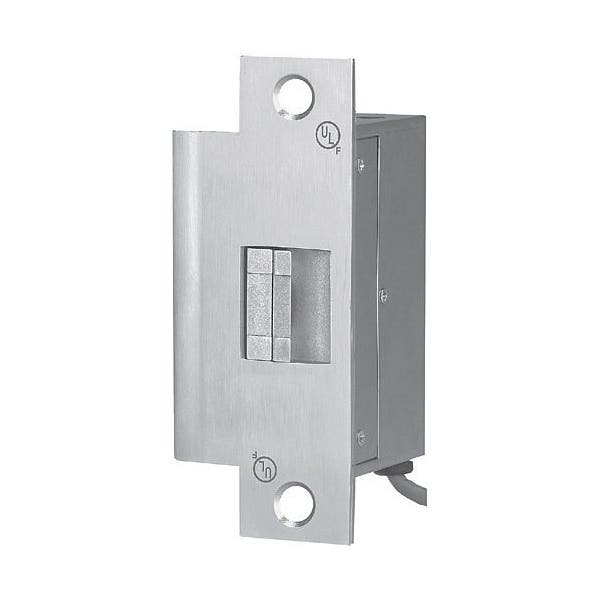

24VDC UNILATCH MOTORIZED ELECT. STRIKE.
BRAND
Securitron
SES #
SEC UNL24
MFG #
UNL-24
UPC
784607028253
Your Price
Usually ships between 3-7 business days
The universal compact, high performance, no cut electromechanical motorized electric strike for use with cylindrical locksets. The UNL is capable of releasing under preload conditions and includes lock monitoring standard. Strong enough to withstand windstorm conditions, the UNL is the UL listed, fire-rated electric strike that provides ANSI/BHMA Grade 1 holding power.
- No cutting or altering of the jamb required
- Accommodates up to 5/8" latchbolt
- Fits standard ANSI 4-7/8" strike cutout
- Also available in Oil Rubbed Bronze (US10B)
- Motorized, no solenoids
- Fully concealed installation
- Maintains deadlatch function at all times
- Continuous duty
- Releases under pre-load
- Latch status sensor is standard (SPDT)
- UL Listed
- MagnaCare lifetime replacement, no fault warranty
- Holding Force: 1500lbs [680kg]
- Current Draw:
- 12VDC: 40mA continuous, minimum 300mA when operating
- 24VDC: 40mA continuous, minimum 200mA when operating
- Higher capacity supply (1-3 Amps) is recommended for startup inrush to achieve best operation under pre-load
- Operating Temperature: -20 to +125F [-29 to +52C]
- Shipping Weight: 1.6 lbs.
- Certifications and Listings
- UNL and MUNL - Windstorm Latching Hardware (ZHEM)
- UL/cUL GXAY.R18923 / GXAY7.R18923
- UL ZHEM.R25219
- UL 10C Listed, 3 hour single door
- UL listed to ANSI/ SDI-BHMA A250.13(60 PSI) Windstorm
- UL Certificate of Compliance (CoC)
- UNL and MUNL - Underwriter's Laboratories: File R18923
- GXAY and GXAY7 Electric Strike for Fire Door (UL 10B & UL 10C)
- CAN4-S104, CAN/ULC Listed
- NFPA-252 fire door compliant
- ANSI/BHMA A156.31, Grade 1; E09321,E09322, E09323
- ASTM-E152 fire door compliant
