News

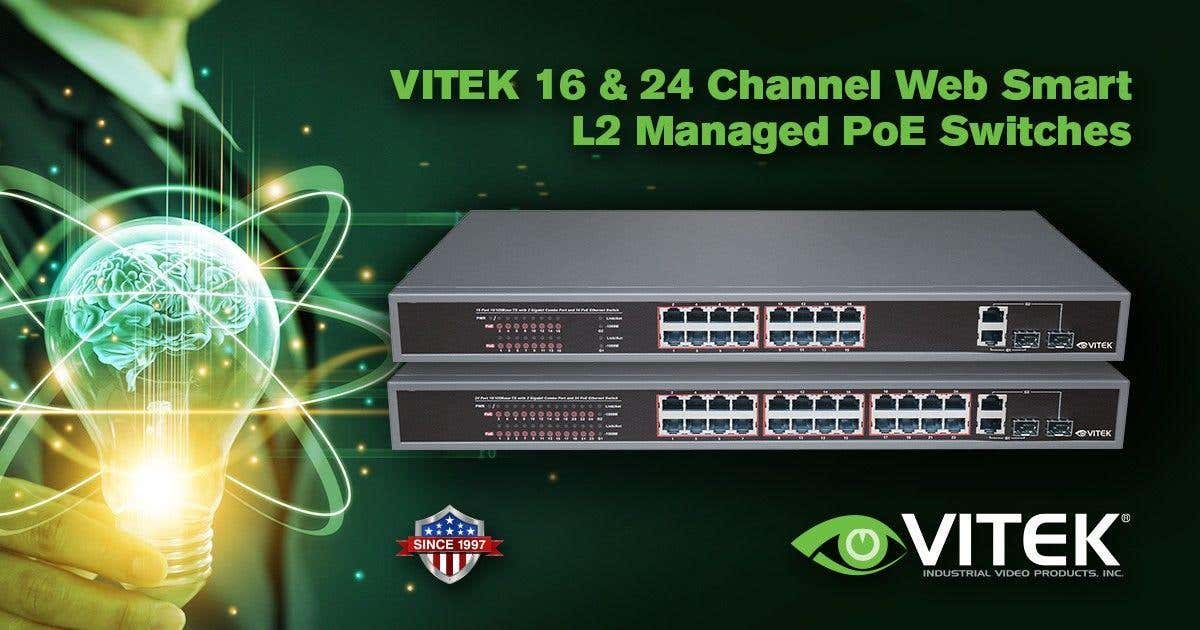

VITEK Web Smart L2 Managed PoE Switches are designed to deliver in dedicated security environments. These easy-to-deploy Web Smart switches provide high performance, cost-effective, L2 networking solutions for both enterprise and small to mid-sized networks, and are available with 16 or 24 PoE Channels.

VITEK L2 Web Smart Switches support up to 370W Power Budget (VT-24P370WS) or 250W Power Budget (VT-16P250WS) for powering IP Cameras and devices in dedicated video surveillance applications, and have 16 or 24 10/100Base-TX ports, as well as 2 combo ports (10/100/1000Base-T or SFP/1000Base-X).

VITEK Web Smart L2 Managed PoE Switches feature Smart IP Camera Freeze Detection that automatically power cycles the camera if 'camera freeze' is detected, dramatically reducing on-site service calls! If the video becomes too unstable (either because there is a bad network connection or because the camera has frozen), then Smart IP Camera Freeze Detection will automatically power cycle the camera to resolve the issue and restore video stability!

VITEK Web Smart L2 switches also support Port Based VLAN / 802 .1Q Tag VLAN and IEEE802.3x Flow control across all ports, and have an 8.8Gbps backplane bandwidth capacity. These switches also support IEEE802.3ad Port trunk with LACP, IEEE 802.1p class of service, Link Aggregation, embedded HTTP Web Management, and a 3-Year Warranty.

These easy-to-use L2 managed switches are ideal for deployment in all dedicated security environments where power budget and reliability are critical!

VITEK WEB SMART L2 MANAGED POE SWITCHES:

VT-24P370WS

24 Port Layer 2 Web Smart Managed Ethernet Switch with PoE Injector

·         24x 10/100Base-TX PoE ports + 2 combo ports (10/100/1000Base-T or SFP/1000Base-X)

·         370 Watt PoE Power Budget

·         Smart IP Camera Freeze Detection automatically power cycles the camera if ‘camera freeze’ is detected, dramatically reducing on-site service calls!

·         Supports Port Based VLAN / 802 .1Q Tag VLAN

·         High back-plane bandwidth 8.8Gbps

·         IEEE802.3x Flow control

·         L2 ~ L4 Class of Service

·         Supports IEEE802.3ad Port trunk with LACP, IEEE 802.1p class of service, Broadcast storm filter, DHCP clients

·         Embedded HTTP Web Management

·         3-Year Warranty

VITEK UNMANAGED SWITCHES ALSO AVAILABLE:

VT-16P200

16 Port Unmanaged PoE Switch w/1 Gigabit SFP Fiber Combo / 1 Gigabit RJ-45

·         16x 10/100Base-TX PoE ports + 1 combo ports (10/100/1000Base-T or SFP/1000Base-X) + 1 COM Port

·         200 Watt Total Power Budget

·         IEEE802.3/u/ab & 802.3af/at

·         High back-plane bandwidth 7.2Gbps

·         IEEE802.3x Flow control

·         3-Year Warranty

VT-8P120

8 Port PoE Unmanaged Switch w/2 Uplink Ports

·         8x PoE Ports: 10/100Mbps / 2x Uplink Ports:10/100/1000Mbps

·         120 Watt Total Power Budget

·         IEEE802.3/u/ab & 802.3af/at

·         High back-plane bandwidth 5.6Gbps

·         IEEE802.3x Flow control

·         3-Year Warranty

VT-4P65

4 Port PoE Unmanaged Switch w/2 Uplink Ports

·         4x PoE Ports: 10/100Mbps / 2x Uplink Ports:10/100Mbps

·         65 Watt Total Power Budget

·         IEEE802.3/u/ab & 802.3af/at

·         Compact size, Wall-Mountable design

·         Easy plug-and-play installation

·         3-Year Warranty

VT-8POD48V

8 Port Outdoor (IP65) PoE Unmanaged Switch w/2 Uplink Ports

·         8x PoE Ports: 10/100Mbps / 2x Uplink Ports:10/100Mbps

·         120 Watt Total Power Budget

·         IEEE802.3/u/ab & 802.3af/at

·         1.8Gbps Backplane Bandwidth

·         Wind and Water Proof, IP65 Ingress Protection, Lightning Protection

·         3-Year Warranty
