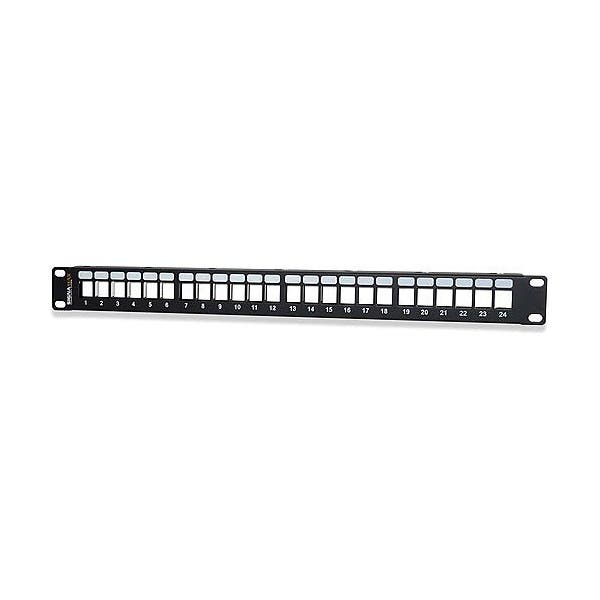

Signamax 24U-HDMMP 24-Port Field-Configurable Panel 1.75 in.H
BRAND
Signamax
MFG #
24U-HDMMP
SES #
SMX 24U-HDMMP
UPC
763474145324
Your Price
Usually ships between 3-7 business days
The SIGNAMAX Field Configurable Patch Panels are designed to accommodate any keystone footprint module. These field-configurable panels provide the ability to populate only the number of ports that are needed and offer multiple configuration options with copper and fiber, different jack colors, and even different multimedia modules.
- Meets EIA/ECA-310-E 19 in mounting standards
- Compatible with Signamax Keystone Modules to acco mmodate a multitude of applications
- Removable rear cable management bar with all high-density panels
- Cold-rolled steel construction for maximum strength and durability
JACK TYPE
Keystone Footprint
CONSTRUCTION
Panel:Front: Steel with corrosive resistant black finishRear: SteelCable management bar: Steel with nickel platingJack:Housing: High impact thermoplastic, UL94V-0 fire retardantSpring Wire: Phosphor bronze alloy plated with 50 μin of gold over 70 to 100 μin of nickelIDC: 110 type, phosphor bronze alloy with 100 μin 100% tin alloy
MOUNTING DIMENSIONS
Panel: 19-in rack mountableDepth:Management Bar Installed: 4.5" (114 mm)Management Bar Uninstalled: 1.5" (38 mm)Height:24-Port: 1 RMU (1.75" (44.45 mm))48 & 72-Port: 2 RMU (3.50" (88.90 mm))
ENVIRONMENTAL CONDITIONS
Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)Operating RH: 93% Max (non-condensing)
COMPLIANCE
CEA-310-E
WARRANTY
5-year Limited Component10-year Signamax Base Trunk15-year Signamax Extended Component25-year Signamax Cabling System
