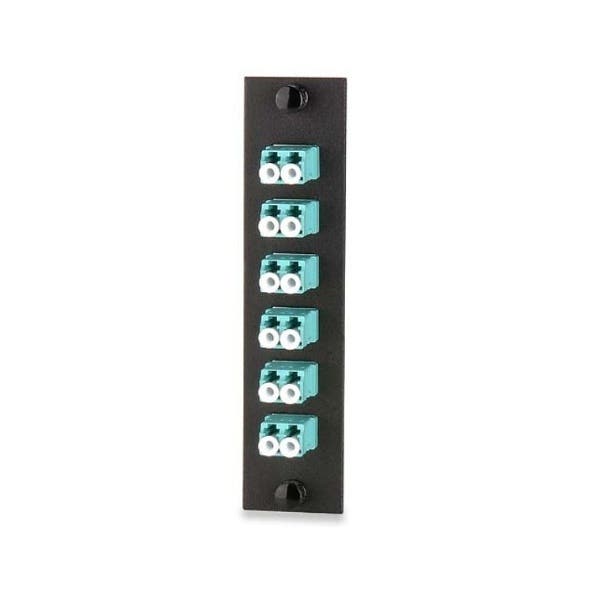

12-Fiber (6-Duplex) LC MM LOF Adapter Plate - Aqua Adapters
BRAND
Signamax
SES #
SMX UFEB06LCG
MFG #
UFE-B-06LC-G
UPC
763474174775
Your Price
Usually ships between 3-7 business days
Specify optical fiber adapter plates for ST-, FC-, SC-, MT-RJ- or LC-type connections. Adapter plates are compatible with all Signamax wall and rack mount optical fiber enclosures and available in 6 simplex and duplex, 8 simplex and duplex and 6 quad configurations with fiber counts of up to 24 per adapter plate. They mount easily by means of plunger locks (-œpushpins"). ST, FC, SC and LC connector plates can be equipped with 62.5-µm and 50-µm adapters suitable for multimode applications or a singlemode only version is available with adapters outfitted with zirconia ceramic sleeves. Our SC and LC 10G multimode laser optimized adapter uses zirconia ceramic sleeves.
- ST-, FC- SC-, MT-RJ-, LC-type connections
- UPC and APC singlemode versions
- Compatible with all Signamax wall and rack mount optical fiber enclosures
- Available in
- 6 simplex and duplex
- 8 simplex and duplex
- 6 quad configurations
- Fiber counts up to 24 per adapter plate
- Equipped with plunger locks (“pushpins")
- Phosphor bronze and zirconia ceramic sleeves
- Adapters are standard color-coded
- Blank adapter plates are available to cover unoccupied slots
- Unpopulated adapter plates are available for field assembling and building mixed configurations
TRANSMISSION PERFORMANCE
ANSI/TIA-568-C.3: meets or exceeds component specifications
TRANSMISSION MEDIA
ST, FC, MT-RJ:Multimode OM1, OM2Singlemode OS1, OS2SC, LC:Multimode OM1, OM2, OM3, OM4Singlemode OS1, OS2
ADAPTER/CONNECTOR TYPE
ST (BFOC/2.5)FCSC (568SC, SFOC/2.5)LCMT-RJ
INSERTION LOSS
ST, FC, SC, LC:Metal sleeve: 0.10 dB typical, 0.30 dB maximumZirconia sleeve: 0.05 dB typical, 0.20 dB maximumMT-RJ:MM: 0.25 dB typicalSM: 0.20 dB typical
MECHANICAL
ST, FC, SC, LC:Durability: < 0.1 dB typical change, 500 mating cyclesSleeve/ferrule withdraw force: 1.96 N (200 gf) (0.44 lbf) - 5.88 N (600 gf) (1.32 lbf)Mating cycle life: min 500 cyclesMT-RJ:Durability: < 0.1 dB typical change, 500 mating cyclesMating cycle life: min 500 cycles
CONSTRUCTION
Adapter plate: body: steel, black epoxy-powder anticorrosive paintplunger locks: high-impact thermoplastic, UL94V-0 fire-retardantST, FC:Adapter: housing: stainless steelsleeve: MM: phosphor bronze alloySM: zirconia ceramicSC, LC:Adapter: housing: high-impact thermoplastic, UL94V-0 fire-retardantsleeve: MM: phosphor bronze alloySM: zirconia ceramicMT-RJ:Adapter: housing: high-impact thermoplastic, UL94V-0 fire-retardantsleeve: phosphor bronze alloy
ADAPTER FOOTPRINT
Standard ST simplex footprintStandard FC simplex footprintStandard SC simplex and duplex footprintStandard LC duplex and quad footprintStandard MT-RJ footprint
ADAPTER PLATE MOUNTING DIMENSIONS
H 31.0 mm W 131.0 mmH 1.21 in W 5.14 inMounting holes/plunger lock spacing: 119.0 mm (4.69 in) center-to-center
ENVIRONMENTAL CONDITIONS
Operation: -40 °C - +75 °C (-40 °F - +167 °F)
COMPLIANCE
TIA FOCIS, ANSI/TIA-568-C.3, GR-326
APPLICATIONS
ST, MT-RJ:Ethernet 10/100, TR 4/16/100, 100VG-Any LAN, ATM, ISO/IEC 8802-3: FOIRLFC, SC, LC:Ethernet 10, 100, 1000, 10G, 40G, 100GBASE, ANSI X3.166, ANSI X3.184, Fibre Channel, ITU-T G.984,ITU-T G.987, IEEE 802.3av, TR 4/16/100, 100VG-Any LAN, ATM, ISO/IEC 8802-3: FOIRL
WARRANTY
5-year limited component warranty10-year Signamax Link/Channel Warranty15-year Signamax Extended Component Warranty25-year Signamax Cabling System Warranty
