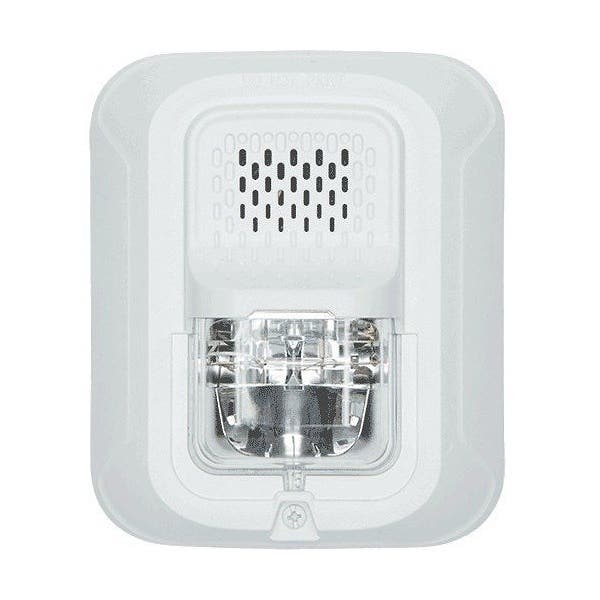

System Sensor CHSWL L-Series Selectable Output Chime Strobe - Wall Mount - White

BRAND
System Sensor
MFG #
CHSWL
SES #
SYS CHSWL
UPC
783863047657

Your Price

Usually ships between 3-7 business days

The System Sensor L-Series product line of wall and ceilingmount chimes and chime strobes include a variety of features that increase their application versatility while simplifying the installation. With white and red plastic housings, System Sensor L-Series can meet virtually any application requirement.

Selectable-output chimes and chime/strobes are private mode notification appliances used to alert trained personnel to investigate possible emergency situations and to take appropriate action. Security guard and nurse workstations are ideal locations for chime products.

All devices feature plug-in design with minimal intrusion into the back box, making the installation fast and foolproof while virtually eliminating costly and time-consuming ground faults.

Installers can easily adapt devices to a wide range of application requirements using field-selectable candela settings, automatic selection of 12-or-24 volt operation, and a rotary switch for chime tones and two volume selections.

  • Updated modern aesthetics
  • Plug-in design with minimal intrusion into the back box
  • Mounting plate shorting spring feature checks wiring continuity before device installation
  • before device installation
  • Captive mounting screw
  • Tamper-resistant construction
  • Field-selectable candela settings:
  • Wall: 15, 30, 75, 95, 110, 135, 185
  • Ceiling: 15, 30, 75, 95, 115, 150, 177
  • Automatic selection of 12- or 24-volt operation
Candela
Selectable strobe settings of 15, 30, 75, 95, 110, 135, 185 cd
Color
White
DC Max Op Current
(see Data Sheet for complete current draw information)
ECS/MNS Device Type
​Chime Strobes​​
FWR Max Op Current
​(see Data Sheet for complete current draw information)
Location
​Indoor​​
Maximum Humidity
​10 to 93% non-condensing
Mounting
​Wall​​
Operating Temperature
​32°F to 120°F (0°C to 49°C)
Series
L-Series​
Voltage
​Regulated 12DC/FWR or regulated 24DC/FWR
Wall Mount Dimensions
​5.6"L x 4.7"W x 1.91"D (142 mm L x 119 mm W x 49 mm D)
Wiring Gauge
​12 to 18 AWG
