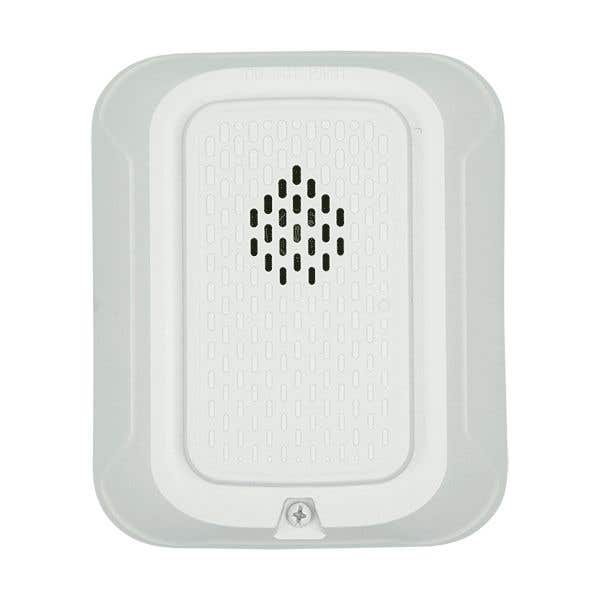

L-Series Wall-Mountable Chime - White

BRAND
System Sensor
SES #
SYS CHWL
MFG #
CHWL
UPC
783863047626

Your Price

Usually ships between 3-7 business days

L-Series, white, wall-mountable, chime that is unmarked.

The System Sensor L-Series product line of wall and ceilingmount chimes and chime strobes include a variety of features that increase their application versatility while simplifying the installation. With white and red plastic housings, System Sensor L-Series can meet virtually any application requirement. Selectable-output chimes and chime/strobes are private mode notification appliances used to alert trained personnel to investigate possible emergency situations and to take appropriate action. Security guard and nurse workstations are ideal locations for chime products. All devices feature plug-in design with minimal intrusion into the back box, making the installation fast and foolproof while virtually eliminating costly and time-consuming ground faults. Installers can easily adapt devices to a wide range of application requirements using field-selectable candela settings, automatic selection of 12-or-24 volt operation, and a rotary switch for chime tones and two volume selections.

  • Updated modern aesthetics
  • Plug-in design with minimal intrusion into the back box
  • Mounting plate shorting spring feature checks wiring continuity before device installation
  • Captive mounting screw
  • Tamper-resistant construction
  • Field-selectable candela settings:
  • - Wall: 15, 30, 75, 95, 110, 135, 185
  • - Ceiling: 15, 30, 75, 95, 115, 150, 177
  • Automatic selection of 12- or 24-volt operation at 15 and 30 candela
  • Rotary switch for tone and volume selections
  • Five selectable tones with high and low volume settings
  • Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices
  • Wall models listed for wall mounting only, ceiling models listed for ceiling mounting only
Color
​White
DC Max Op Current
​(see Data Sheet for complete current draw information)
Dimensions
​5.6"L x 4.7"W x 1.25"D (143 mm L x 119 mm W x 32 mm D)
ECS/MNS Device Type
​Chimes​​
FWR Max Op Current
​(see Data Sheet for complete current draw information)
Location
Indoor​​
Maximum Humidity
10 to 93% non-condensing
Mounting
​Wall​​
Operating Temperature
​32°F to 120°F (0°C to 49°C)
Series
L-Series​
Voltage
​Regulated 12DC/FWR or regulated 24DC/FWR
Wiring Gauge
​12 to 18 AWG
