4-Wire Photoelectric Low-Flow Duct Smoke Detector
BRAND
System Sensor
MFG #
D4120
SES #
SYS D4120
UPC
999999528760
Your Price
Usually ships between 3-7 business days

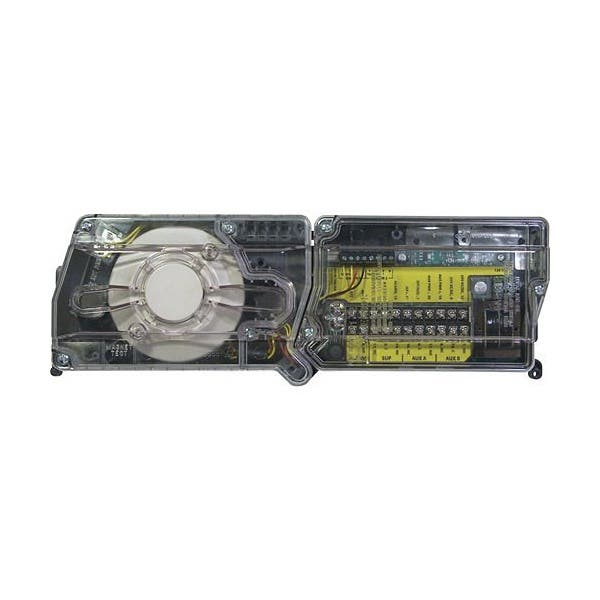

The InnovairFlex D4120 4-wire photoelectric duct smoke detector features a pivoting housing that fits both square and rectangular footprints and mounts to round or rectangular ductwork. This unit senses smoke in the most challenging conditions, operating in airflow speeds of 100 to 4,000 feet per minute, temperatures of –4°F to 158°F, and a humidity range of 0 to 95 percent (noncondensing). A plug-in sensor head offers improved false alarm immunity and simple installation, testing, and maintenance. An improved cover design isolates the sensor head from the low-flow feature for simple maintenance.
- 4-Wire Photoelectric, integrated low-flow technology
- Versatile mounting options: square or rectangular configuration
- Increased wiring space with a newly added ¾" conduit knockout
- Plug-in sensor offers superb false alarm immunity and the latest sensor technology
- Broad ranges for operating temperature (–4°F to 158°F) and humidity (0% to 95% non-condensing)
- Patented sampling tube installs from front or back of the detector with no tools required
- Increased wiring space with a newly added ¾-inch conduit knockout
- One easy-access Test/Reset button and improved LED status
- Patented interconnect feature for multi-fan shutdown
- New high contrast terminal designations
Air Duct Velocity
100 to 4000 ft./min. (0.5 to 20.32 m/sec)
Alarm auxiliary contacts DPDT
10A @ 30 VDC (resistive); 10A @ 250 VAC (resistive); 1/2 HP @ 240 VAC ; 1/4 HP @ 120 VAC
Alarm Current:
65 mA @ 24VDC 135 mA RMS @ 24VAC 60Hz 35 mA RMS @ 120VAC 60Hz
Alarm Initiation Contacts
2.0A @ 30 VDC (resistive)
Alarm Response Time
15 sec.
Dimensions
Rectangular: 14.38 in (37 cm) L; 5 in (12.74 cm) W; 2.5 in (6.36 cm) D / Square: 7.75 in (19.7 cm) L; 9 in (22.9 cm) W; 2.5 in (6.36 cm) D
Input Capacitance
270 μF max.
Operating Humidity Range
0% to 95% relative humidity non-condensing
Operating Temperature Range
-4°F to 158°F (-20°C to 70°C)
Power Supply Voltage
20-29 VDC; 24 VAC, 50-60 Hz; 120 VAC 50-60 Hz
Power Up Time
35 sec. max.
Reset Time by Power Down
0.6 sec. max.
Reset Time w RTS451
0.03 to 0.3 sec.
Reset Voltage
3.0 VDC min.; 2.0 VAC min.; 10 VAC min.
Shipping Weight
2.5 lbs. (1.14 kg)
Standby Current
21 mA @ 24VDC 65 mA RMS @ 24VAC 60Hz 20 mA RMS @ 120VAC 60Hz
Storage Temperature
-22°F to 158°F (-30°C to 70°C)
Voltage Range
20-29 VDC; 24 VAC 50-60 Hz; 120 VAC 50-60 Hz
Wiring
4-wire
