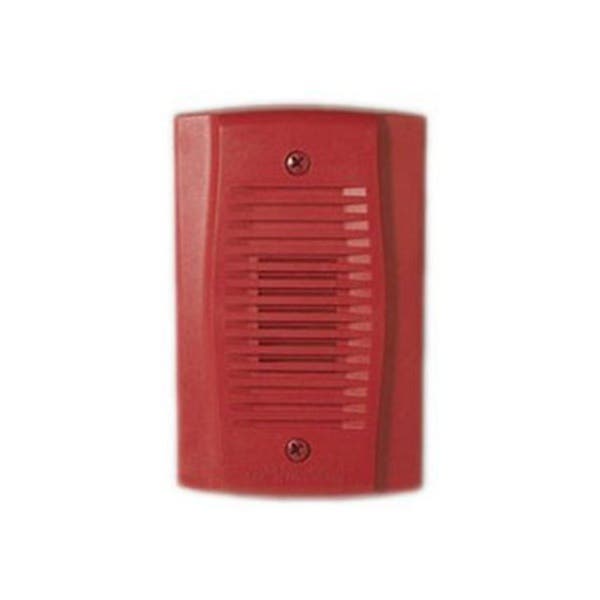

12/24V Mini-Horn - Red
BRAND
System Sensor
MFG #
MHR
SES #
SYS MHR
UPC
783863032813
Your Price
Usually ships between 3-7 business days
The SpectrAlert Advance MH Series mini-horns are available in red or white. They feature 12 or 24 volt operation, high and low volume settings, and temporal or continuous tones. These small footprint horns can be mounted to single gang back boxes for aesthetically sensitive applications. If required, the MDL module can be used to provide synchronization.
- Offers high and low volume settings, and temporal or non-temporal tones
- Can be mounted to single gang back boxes for aesthetically sensitive applications
- Operates between 32 and 120 degrees Fahrenheit from a regulated DC or full-wave rectified, unfiltered power supply
- Mounts to single gang back box
- Compatible with MDL sync module
- Mechanically and electrically compatible with PA400 series Mini-Alert™ sounders
- Listing for ceiling or wall mounting .
Color
Red
DC Max Op Current
(see Data Sheet for complete current draw information)
Dimensions
4.6"L x 2.9"W x .45"D (117 mm L x 74 mm W x 11.5 mm D)
FWR Max Op Current
(see Data Sheet for complete current draw information)
Location
Indoor
Maximum Humidity
10 to 93% non-condensing
Mounting
Wall
Operating Temperature
32°F to 120°F (0°C to 49°C)
Series
SpectrAlert Advance
Voltage
Regulated 12DC/FWR or regulated 24DC/FWR
Wiring Gauge
12 to 18 AWG
