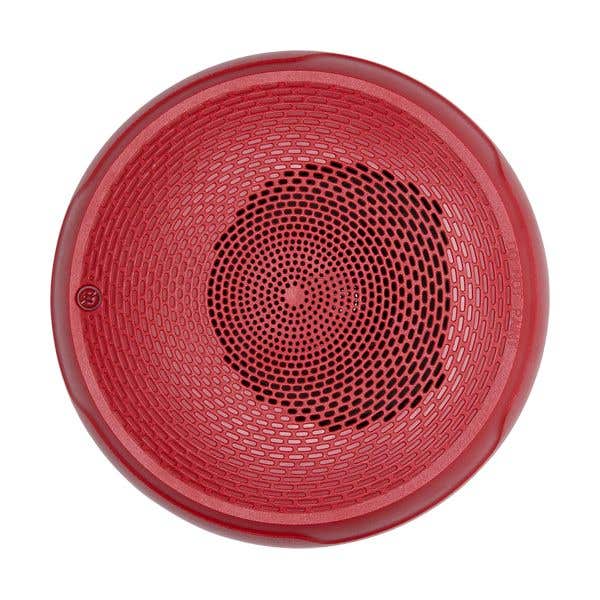

L-Series Ceiling Speaker - Red

BRAND
System Sensor
SES #
SYS SPCRL
MFG #
SPCRL
UPC
783863048388

Your Price

Usually ships between 3-7 business days

L-Series, red, ceiling-mountable, high fidelity, speaker.

System Sensor L-Series of speakers and speaker strobes reduce costly ground faults using a plug-in design and universal mounting plate that allow the installer to pre-wire mounting plates, dress the wires, and confirm wiring continuity before plugging in the speakers. In addition, a protective plastic cover prevents nicked wires by covering exposed speaker components. These devices also enable faster installations by providing instant feedback to ensure that wiring is properly connected, rotary switches to select voltage and power settings, and 7 field-selectable candela settings for both wall and ceiling speaker strobes. The low total harmonic distortion of the SP speaker offers high fidelity sound output while still offering high volume sound output for use in high ambient noise applications.

  • Plug-in design and protective cover reduce ground faults
  • Universal mounting plate with an onboard shorting spring tests wiring continuity before installation
  • No extension ring required
  • Field selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177
  • Automatic selection of 12- or 24-volt operation at 15 and 30 candela
  • Rotary switch simplifies field selection of speaker voltage (25 and 70.7 Vrms) and power settings (¼, ½, 1 and 2 watts)
  • Speakers offer high fidelity and high volume sound output
  • 520 Hz +/- 10% square wave tone capable with compatible FACP
  • Compatible with System Sensor synchronization protocol
  • Electrical compatibility with existing SpectrAlert and SpectrAlert Advance products
  • Tamper-resistant construction
  • Updated modern aesthetics
Color
Red
Dimensions
​6.8" Dia. x 2.6" D (173mm Dia. x 66mm D)
ECS/MNS Device Type
​Speakers​​
Frequency Range
​400 to 4000 Hz
Location
​Indoor​​
Maximum Humidity
​10 to 93% non-condensing
Mounting
​Ceiling
Power
​¼, ½, 1, and 2 watts​​
Series
L-Series​
Voltage
​25 Volts or 70.7 Volts (nominal)
Wiring Gauge
​12-18 AWG
