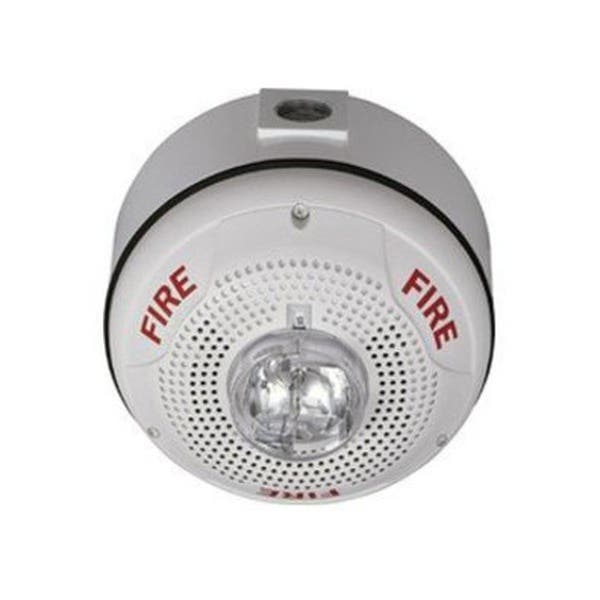

System Sensor SPSCWHK SpectrAlert Speaker Strobe - Ceiling Mount - High CD - "FIRE" Marking - White (Includes Plastic Weatherproof Back Box)
BRAND
System Sensor
MFG #
SPSCWHK
SES #
SYS SPSCWHK
UPC
783863034220
Your Price
Usually ships between 3-7 business days
The SpectrAlert Advance series of notification appliances offers a wide range of speaker/strobe products for wall and ceiling applications, indoors and outdoors. The strobe portion is designed to be used in 12 or 24 volt, DC or FWR (full wave rectified) systems. The speaker portion can be operated with distribution amplifiers having an output voltage of either 25 or 70.7 volts.
- Weatherproof per NEMA 4X, IP56
- Rated from –40°F to 151°F
- Plug-in design reduces ground faults
Candela
Selectable high-candela strobe settings of 135, 150, 177 and 185 cd
Color
White
DC Max Op Current
(see Data Sheet for complete current draw information)
Dimensions (including lens)
6.8" Dia x 4.7" Depth
Dimensions with Back Box
7.2" Dia x 7.6" Depth (182.88mm x 193.04mm)
Frequency Range
400 to 4000 Hz
FWR Max Op Current
(see Data Sheet for complete current draw information)
Location
Outdoor
Marking
FIRE
Mounting
Ceiling
Operating Temperature
-40°F to 151°F (-40°C to 66°C)
Operating Voltage Range
8 to 17.5 V (12V nominal) or 16 to 33 V (24 nominal)
Operating Voltage Range with MDL
9 to 17.5 V (12V nominal) or 17 to 33 V (24 nominal)
Outdoor Device Type
Speaker Strobes
Power
¼, ½, 1, 2 watts
Series
SpectrAlert Advance
Voltage
25 Volts or 70.7 Volts (nominal)
Wiring Gauge
12-18 AWG
