• Provides SNMP reporting and supports port based management
• Real-time stats show converter speed, link activity, and duplex status
• Command line interface via the console port or telnet
• Web-based management via the gigabit port
• Supports SNMP v1 / v2c / v3
• Reports cooling fan and power supply status
• Lifetime TRENDnet Manufacturer's Warranty

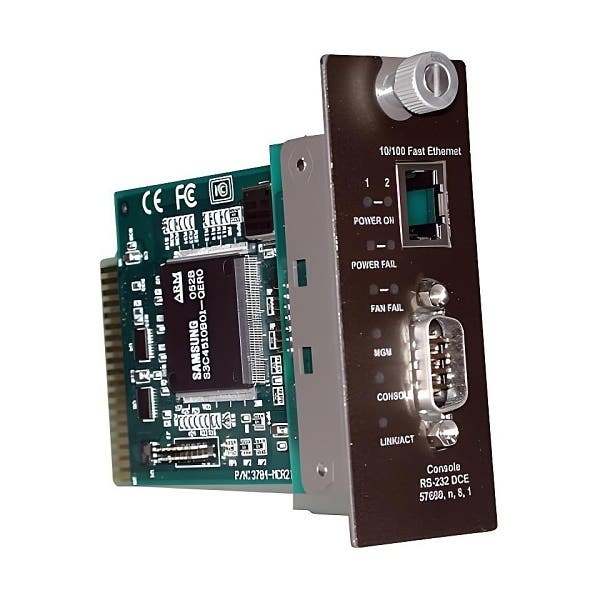

The TFC1600MM module supports the management of media converters and power supplies installed in the TFC-1600 fiber chassis. This module provides instant access to cooling fan and power supply status, and allows the user to configure and monitor the state of the chassis by means of a workstation with support for SNMP, or from a PC via web browser.

Event Notifications

Be notified when an event notification is raised and correct error conditions in a timely manner to maintain network uptime. Supports cold / warm start, link up / down, authentication failure, power supply on / off, connected / disconnected, module connected / disconnected, and unknown failure.

Configuration

Configure settings such as link loss carry forward / link loss return, module name, reset module, download software via HTTP, IP address / subnet mask / default gateway, and redundant backup.

Real-time Monitoring

Real-time monitoring provides the latest statistics on link status, slot occupied, revision, converter type, and part number.

PACKAGE CONTENTS

TFC-1600MM

CD-ROM (MIB & User's Guide)

RJ-45 to RS-232 console cable (100 mm / 3.94 in.)
