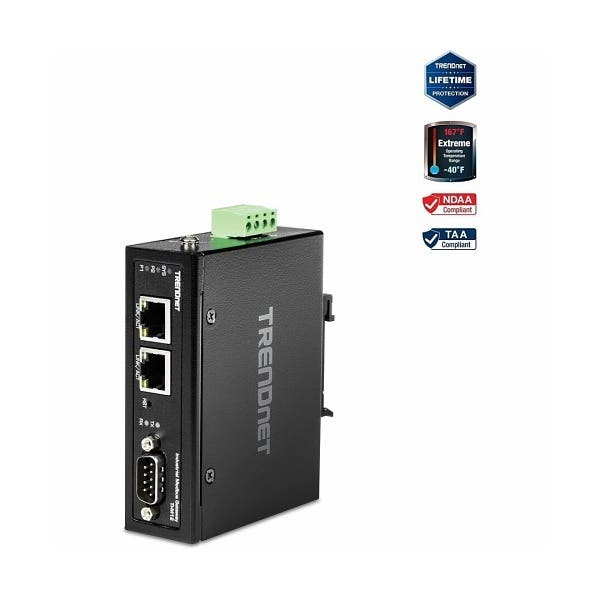

TRENDnet TI-M12 Ethernet Adapter
Your Price
Usually ships between 3-7 business days
- DEVICE INTERFACE: 1 x Serial (DB-9) port; 2 x 10/100Mbps (RJ-45) ports; 4-pin removable terminal block; LED indicators; DIN-Rail mount; Wall mount; Grounding point
- CONNECT ONE SERIAL DEVICE: The 1-Port Industrial Modbus Gateway supports RS-232, RS-422 and 2-wire RS-485, and allows you to connect one serial device such as a modem to a network.
- MANAGEMENT CONFIGURATION: Web / Telnet / Windows -based management
- IP30 RATED HOUSING: Hardened components for the Modbus Gateway are rated for extreme temperatures - 40° – 75° C(-40° – 167° F)
- DATA TRANSFER RATE: The modbus gateway has a serial port baud rate from 50 bps to 921.6 Kbps
- Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- TRENDnet LIFETIME PROTECTION: The TI-M12 Industrial Modbus Gateway is backed by our lifetime TRENDnet Manufacturer Protection
- NDAA / TAA compliant
TRENDnet's Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.
Network
Two fast ethernet ports support distances up to 100m (328 ft.) using Cat5e cabling.
Serial Connector
Easily connect RS-232/RS-422/RS-485 serial devices to the network.
Industrial Design
Designed with a rugged IP30 rated housing, vibration and shock resistance, ESD/EMI/surge protection, and a wide operation temperature range -40° - 75° C (-40° - 167° F).
FEATURES | Network
This modbus converter features two fast ethernet ports that support distances up to 100m (328 ft.) using Cat5e cabling
Serial Connector
The modbus RTU to TCP gateway easily allows users to connect RS-232/ RS-422/RS-485 serial devices to the network
Industrial Design
This modbus gateway is designed with a rugged IP30 rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surges, and a wide operation temperature range -40° - 75° C (-40° - 167° F)
NDAA / TAA compliant (U.S. and Canada only)
- 1 x serial port, 2 x Fast Ethernet ports
- Connects RS-232/RS-422/RS-485 serial device, such as a modem, to a network
- Supports up to 32 RS-422/RS-485 TCP serial devices per port
- Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
- Wide operation temperature range -40° - 75° C (-40° - 167° F)
- IP30 rated metal housing
- NDAA / TAA compliant
