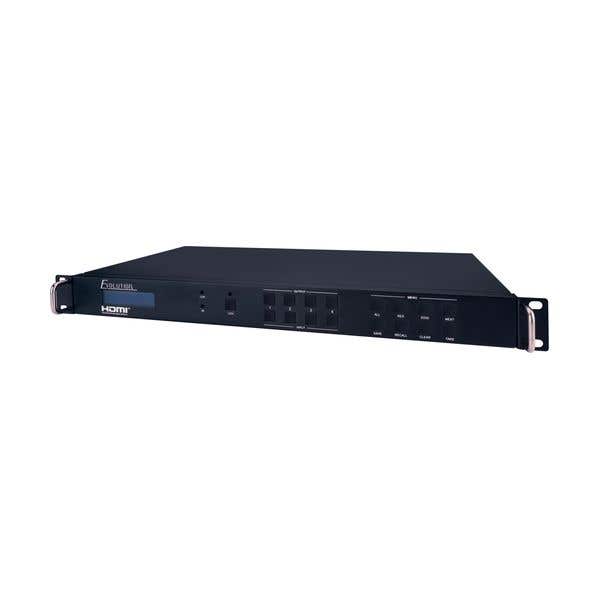

HDMI 4K 4x4 Matrix, Video Wall
BRAND
Vanco
MFG #
EVMX44VW
SES #
VAN EVMX44VW
UPC
741835116640
Your Price
Usually ships between 3-7 business days
Package Contents:
- (1) EVMX44VW 4×4 Matrix Switcher
- (1) IR Remote
- (4) IR Receivers
- (4) IR Emitters
- (5) 3-pin Phoenix Connectors
- (4) 5-pin Phoenix Connectors
- (1 ) VAD9113X Toslink (Female) to 3.5mm Stereo (Male) Adapter
- (1) AC Power Cord
- (1) Product Manual
- 4K 4×4 Matrix with Video Wall Modes
- Supports up to 4K@60Hz and 4:4:4 chroma subsampling
- Features resolution scaling with multiple formats available
- Supports up to a 4 display video wall
- Supports 180° screen rotation and bezel adjustments
- Includes built-in audio matrix to distribute up to four zones with analog and digital outputs
- Able to embed audio onto HDMI outputs
- IR pass-through to control sources from display locations
- Controllable via front panel, IR, RS-232 and TCP/IP
- Easy and intuitive User Interface to control switching and video wall functions via IP
- HDMI 2.0 and HDCP 2.2 compliant
- Rack mountable design
- Dimensions: 17” W x 8.7” D x 1.7” H (430mm × 220mm × 44mm)
- Tech Support Tips:
- When splicing and using in video wall mode, it is best to leave the Output Format as 3840×2160@60Hz or 1920×1080@60Hz to avoid image tearing
- The digital optical audio breakouts on the EVMX44VW are 3.5mm connections, (1 qty) VAD9113X Toslink (Female) to 3.5mm Stereo (Male) Adapter is included, additional adapters are available for purchase
