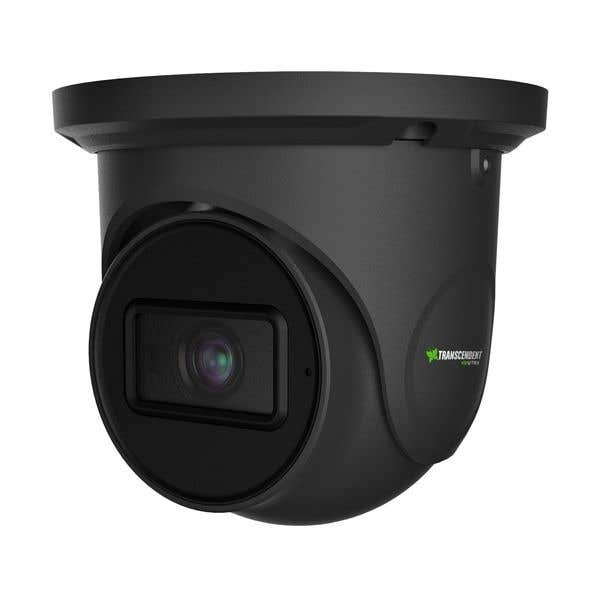

5MP IP IR Turret Camera-2.8mm Lens-H.265-12VDC/POE-CH
BRAND
Vitek
SES #
VIT CTNT5RFEAB-2
MFG #
VTC-TNT5RFEAB-2
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
Transcendent Series High Definition 5 Megapixel NDAA Compliant IP Network Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.
- 1/2.7” 5.0 Megapixel Progressive Scan CMOS Image Sensor
- Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
- 2.8mm Fixed Iris Lens
- Matrix IR (up to 100’ IR Range)
- True Wide Dynamic Range (120dB)
- True Mechanical Day/Night function by ICR
- XD-DNR (3D & 2D-DNR) Noise Reduction
- Region Intrusion Detection, Object Abandoned / Missing, Scene Change Detection, Line Crossing, Video Blur, Video Color Cast Detection
- H.265+ / H.265 / H.264+ / H.264 / MJPEG
- MicroSD Card Slot for Local Recording (Up to 256GB)
- 1 Ch. Audio In + Built-in Mic - *Please research state, local, and federal laws regarding the implementation of audio surveillance
- Remote Viewing via VMS, Internet Explorer (Plug-in Req’d), Edge in IE Mode, and iOS & Android Apps
- ONVIF Compliant
- IP67 Weather Resistance
- Optional Wall Mounts (VT-TWMT-3, VT-TWMT-A1 [reqs. VT-TJB08]), Junction Boxes (VT-TJB01, VT-TJB08), and Pendant Mounts (VT-TPDMT-A1 [reqs. VT-TJB08], VT-TPDM-2 [reqs. VT-TJB01]) Available
- 12VDC & PoE (Power over Ethernet) Operation
- 3-Year Warranty
Image Sensor
1/2.7” 5.0 Megapixel CMOS Image Sensor
Image Size
5 MegaPixel (2880 × 1620)
Resolution
Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
Min. Illumination
0.007 lux @F1.6, AGC ON; 0 lux with IR
Electronic Shutter
1 s ~ 1 / 100000 s
Lens
2.8mm Fixed Iris Lens, FoV H: 110.5°, FoV V: 57°, FoV Diag: 131°
IR LEDs (Range)
1 Matrix Style IR (up to 100’)
Video Compression
H.265+ / H. 265 / H.264+ / H.264 / MJPEG
Audio Compression
G.711A / G.711U
Main-Stream
5MP(1~20fps)/4MP/3MP/1080P/720P(1~30fps)
Sub, Third Stream
720P/D1/ CIF (1~30fps), 60Hz: D1/480× 240/CIF (1~30fps)
Bit Rate / Type
64 Kbps ~ 8 Mbps / VBR + CBR
Wide Dynamic Range
120dB WDR
Digital Noise Reduction
3D-DNR
Other Features
Back Light Compensation, Highlight Compensation
NDAA Compliant
Yes
Image Setting
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR
Analytics
Region Intrusion, Abandoned Object, Scene Change, Line Crossing, Video Blur, Video Color Cast Detection
Smart Alarm
Motion Detection, SD Card Error, SD Card Full
General Functions
Watermark, IP Filter, Video Mask, Illegal Login Lock
Region of Interest (ROI)
Each ROI to be configured separately
Hardware Reset
Yes
Analog Video Output
No
Audio
1 Ch. Audio In + Built-in Mic*
Local Storag
Built-in Micro SD card slot up to 256GB
Remote Viewing
VMS / Web Browswer / iOS & Android Apps
Supported Browsers
Internet Explorer (IE) – Plug-in Required, Edge in IE Mode
Connection Protocol
ONVIF
Weather Resistance
IP67
Power Input
12VDC / PoE
Power Consumption
12VDC 300mA (LEDs Off) / 600mA (LEDs On)
Power Consumption
PoE
