C3-400 Panel in Metal Cabinet with Power Supply Bundle
BRAND
ZKTeco
SES #
ZKA C3400PROBUN
MFG #
US-C3-400-PRO-BUN
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days

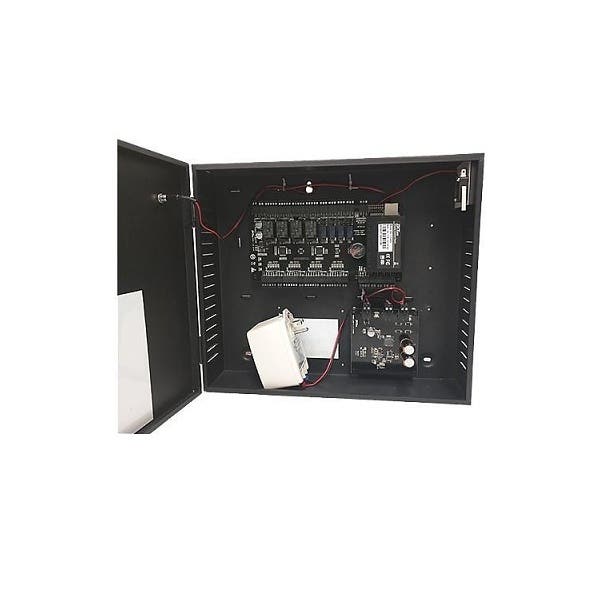

C3 Pro Series is a project oriented high-end product line with unique features and advanced access control functions, which can be managed by TCP/IP communication thru LAN or WAN networks. The C3 Pro Series requires our NEW ZKBioSecurity web-based software. The C3-400 Pro Bundle includes a C3-400 Pro controller, power supply and metal enclosure.
- Over-current and over-voltage protection and reversal protection for the power supply and all input/output terminals
- Supports Push protocol
- Reliable network system of controllers using either TCP/IP or RS-485 Serial communication
- Supports different Wiegand formats, and connects to ZK readers as well as HID, Mifare, and generic ID card readers
- Connects with a variety of electric locks, sensors, exit buttons, alarm devices, and indicators
- Can be integrated with 3rd party systems CCTV, Intrusion Detection, Fire Alarm and Elevator Control systems
- Easy-to-use and intuitive programming with ZKBioSecurity Software
- System management by browser from client PC's. No need to install software on each client
- Programming of special logic between doors is set up with simple pull down menus. No special scripts required.
- Management software allows indication of real-time door status and remote commanding of door open/close state. Alarm conditions such as forced open and extended open alarms are reported.
- Advanced access control capabilities are built into the hardware, including anti-passback, Dual and multi-Card Authentication, and Duress Mode.
Number of doors controlled
Four
Numbers of readers supported
12 (8 RS-485 Reader, 4 26-bit wiegand reader)
Types of readers supported
26-bit Wiegand and RS485
Number of Inputs
12 (4 exit Device, 4 Door Status, 4 AUX)
Number of Outputs
8 (4-for C Relay for Lock and 4 for C Relay for Aux Output)
Card holders Capacity
30,000
Log Events Capacity
100,000
Communication
TCP/IP
Package Dimension
350(L)×90(H)×300(W)mm
Package Weight
3.7kg
CPU
32 bit 1.2GHz
RAM
128MB
Flash Memory
256MB
Power
9.6V-14.4V DC
Operating Temp
0-45 °C
Operating Humidity
20% to 80%
