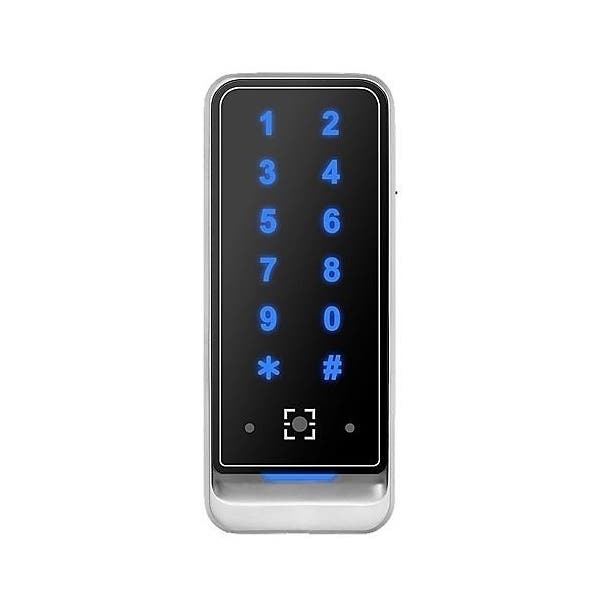

QR502-V is an outdoor-rated vandal-resistant QR code reader. It can additionally read both ZKTeco 125 kHz prox cards and most 13.56 MHz smart cards.
- QR502-V is single-gang size and has avertical footprint. It connects with ZKTeco Atlas 2.6 (or higher), ZKBioSecurity, or any 3rd partyaccess control system capable of generating QR codes.
- QR code & RFID keypad reader
- IP65-rated and vandal resistant (metal enclosure)
- Dynamic QR code with ZKey Mobile Credential APP
- Supports QR code: QR, Data matrix, PDF417, GS1 Databar, Code 128/EAN128, UPC/EAN, Codabar, Code 39/ Code 93 etc.
QR Sensor
QR, Data matrix, PDF417, GS1 Databar, Code 128/EAN128, UPC/EAN, Codabar, Code 39/ Code 93 etc.
RFID
125kHz ID cards / 13.56mHz
Reading Distance
QR Code >/= 5cm; RFID Card >/= 4cm
Communication
Wiegand
Protection
IP65
Power
DC125V (+/- 5%)
Operating Temperature
-4ºF to 140ºF
Storage Temperature
-4ºF to 176ºF
Operating Humidity
20% to 80% (assuming the working environment temp. is 77ºF)
Dimensions
138*58*16 (mm)
