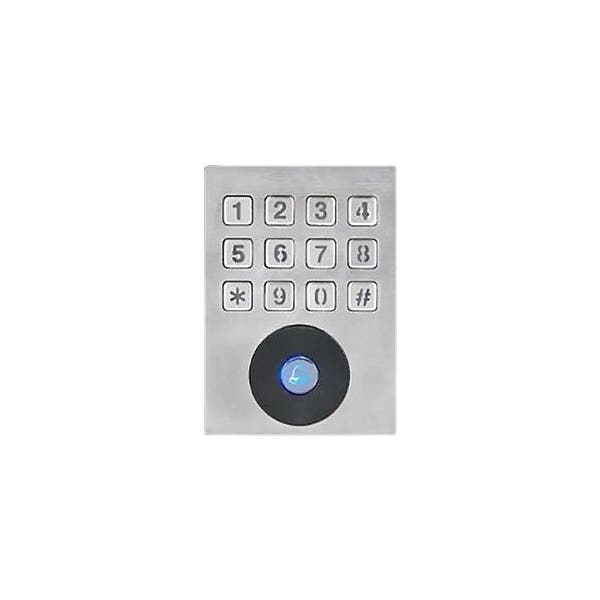

Standalone Metallic RFID Reader Controller - Horizontal
BRAND
ZKTeco
SES #
ZKA SMKH
MFG #
SMK-H
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
SMK-H is an outdoor IP65-rated vandal-resistant metallic RFID reader with a back-lit keypad. SMK-H has a built-in 12V relay contact which can be connected directly to either an electric strike or magnetic door lock.
For the highest level of security and programming flexibility, SMK-H also has a built-in Wiegand-Out port which can be connected to most any access control panel (including ZKAccess C3 and InBio door controllers).
SMK-H comes standard with a built-in ZKAccess 125 KHz 26-bit RFID card reader. Mifare card reader option available.
- IP65-rated vandal-proof metallic enclosure
- Standard ZK 125 kHz 26-bit card reader.
- Optional Mifare card reader available.
- Relay outputs for electric lock and alarm
- Auxiliary inputs for door status sensor and exit switch
Keypad
Blue back-lit, Numeric keys 0-9, Function keys *, #, Bell
LED indicator
Blue and Red
ID Card Capacity
1,000 cards
Standard Functions
Single and dual-factor ID card and password authentication, Access Control Hardware Interface Connects 3rd Party Electric Strike or Magnetic Lock, Door Sensor, Exit Button, Alarm
Wiegand Inferface
Wiegand-Out port
Optional Functions
Built-in Mifare Card reader
Power Supply
12V DC, 750mA
Operating Temperature
-4F° to 122F°
Operating Humidity
20% - 80%
Dimensions (H×W×D)
4.7 x 3.4 x .8 inches
