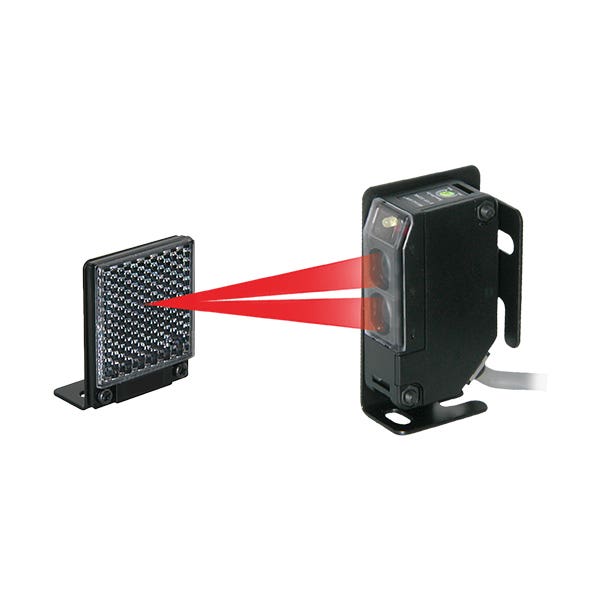

35' Outdoor Reflective PE Beam SPDT 12/24VDC or 24VAC
BRAND
Seco-Larm
MFG #
E-931-S35RRQ
SES #
SCO E931S35RRQ
UPC
676544000495
Your Price
Usually ships between 3-7 business days
- For outdoors gates, garage doors, etc.
- Adjustable sensing range
- 12~240 VDC / 24~240 VAC Operation
- Current draw: Up to 40mA@12VDC
- For indoor or outdoor use (IP66)
- Pre-wired 6.5ft (2m) cord
- Brackets and mounting hardware included
- Compact size
- New single-gang box and wall-mount brackets available
- Typical Applications
- Sensor for garage doors, outdoor gates or overhead doors
- Sensor for industrial automation to detect objects on manufacturing line
Type
NIR Reflective Photoelectric Sensor
Current Draw
Standby- 12VDC@20mA; 24VDC@10mA, Active- 12VDC@40mA; 24VDC@20mA
Sensing Range
0.5' to 35' (0.1 - 11m)
Operating Voltage
12~240 VDC / 24~240 VAC
Reaction time
10ms (max.)
Light Source
IR LED
LEDs - Red
Active
LEDs - Yellow
Standby
Output
SPDT Relay Output
Switching Capacity
250VAC/1A, 30VDC/2A
Operating Temperature
-4°~131° F (-20°~55° C)
Enclosure
IP66 Waterproof
Trigger Output
SPDT Relay output (NO/NC/COM)
