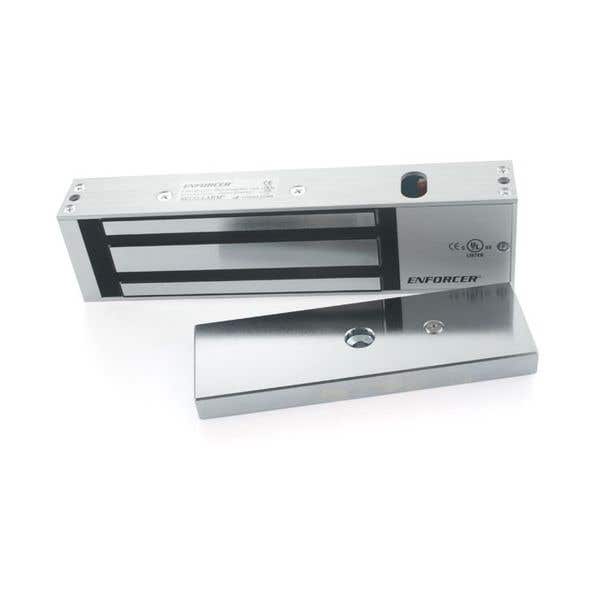

1200# MagLock-12 or 24VDC
BRAND
Seco-Larm
MFG #
E-941SA-1200
SES #
SCO E941SA1200
UPC
676544000709
Your Price
Usually ships between 3-7 business days
- 1,200-lb Holding force
- Anodized aluminum housing (US 28)
- Selectable 12/24 VDC operation
- No residual magnetism
- MOV surge protection
- Adjustable mounting bracket
- Complete mounting hardware for typical installations
- “L" and “Z" brackets available for easy mounting
- Detachable faceplate
Holding Force
1,200-lb (545kg)
Operating Voltage
12/24 VDC±10%
Current Draw
500mA@12VDC, 250mA@24VDC
Operating Temperature
14°~131° F (-10°~55° C)
Electromagnet Dimensions
10-1/2"x1-5/8"x2-5/8" (268x42x67 mm)
Armature Dimensions
7-1/4"x5/8"x2-3/8" (185x16x61 mm)
Case Shipping Weight
54-lb (24.5kg)
Weight
11-lb (5kg)
Case Quantity
5 pcs
