4N1 HD IR CORNER MNT VANDL CAM 2.9MM LENS-IP65-DWDR-TRUE D/N
BRAND
Seco-Larm
MFG #
EV-Y4201-A2SQ
SES #
SCO EVY4201A2SQ
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days

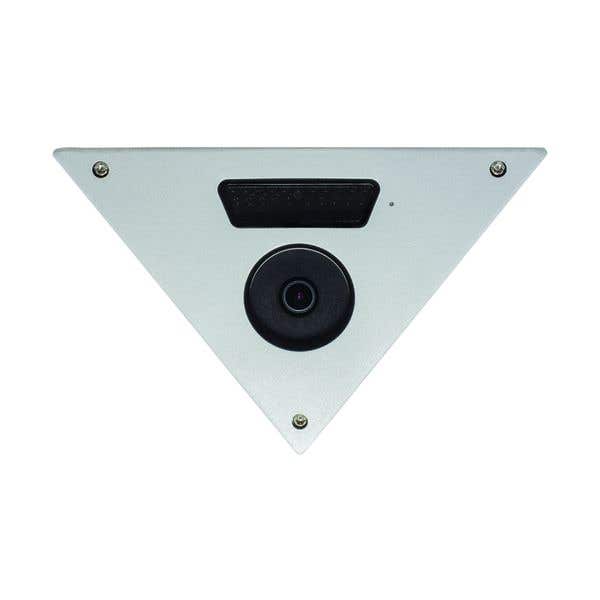

The ENFORCER 4-in-1 HD TVI, CVI, AHD, Analog Corner-Mount Camera has a discreet, low-profile appearance and a wide-angle lens, making it perfect for elevators and office corners.
- Select between multiple formats: TVI, CVI, AHD, and Analog.
- 1/2.8" 2MP Sony STARVIS CMOS.
- Full HD (1920x1080) resolution.
- True Day & Night function with ICR mechanism.
- 3DNR (3D Noise Reduction).
- D-WDR (Digital Wide Dynamic Range).
- Built-in internal joystick OSD control.
- Vandal-resistant metal front panel.
- Weatherproof (IP65).
- 30 Covert IR LEDs for discreet monitoring.
Housing Color
Silver
Type
Corner-Mount Camera
Image sensor
1/2.8" 2MP Sony STARVIS CMOS
Formats
TVI / CVI / AHD / Analog (TVI Default)
Resolution
1920x1080
Viewing Angle
130°
TV Lines
1200TVL
3D-NR
Yes
2D-NR
Yes
DNR
Yes
DWDR
Yes
On Screen Display (OSD)
Yes
Onboard On-Screen Display (OSD) Control
Yes
Megapixels
2MP
Minimum Illumination - IR On
0Lux
Minimum Illumination- LEDs off
0.01Lux, F1.6
IR Range
Up to 82ft (25m)
Video Output
1.0Vp-p complex video output
FPS
30FPS
Lens
3.0mm ICR
F Stop
F1.6
No. of IR LEDs
30
S/N Ratio
50dB
DSS (Digital Slow Shutter)
Yes
Shutter Control
Yes
Operating Voltage
12VDC
Current Draw
ON: 400mA, OFF: 80mA
Gain Control
Yes
White Balance
Auto, Day & Night
IP Rating
IP65
Operating Temperature
14°~122° F (-10°~50° C)
Dimensions
7-1/2"x5-1/2"x1-11/16" (190x140x43 mm)
Weight
13.75-oz (390g)
